Vinca SB1327 Wall-Hung Basin (Corner)

Vinca SB1327

Wall-Hung Corner Basin

PRODUCT FEATURES

• Compact design: Specifically engineered for smaller bathrooms and powder rooms.

• Curved surface: Prevents water pooling and dirt deposition for better hygiene.

• Easy maintenance: Designed for straightforward cleaning.

• Rear overflow: Integrated safety feature to prevent water spillage.

PRODUCT SPECIFICATION

• Installation: Wall-Hung

• Dimension: 390(L) x 460(W) x 125(H) mm

• Material: Vitreous china

• Inlet Hole Size: Ø 35 mm

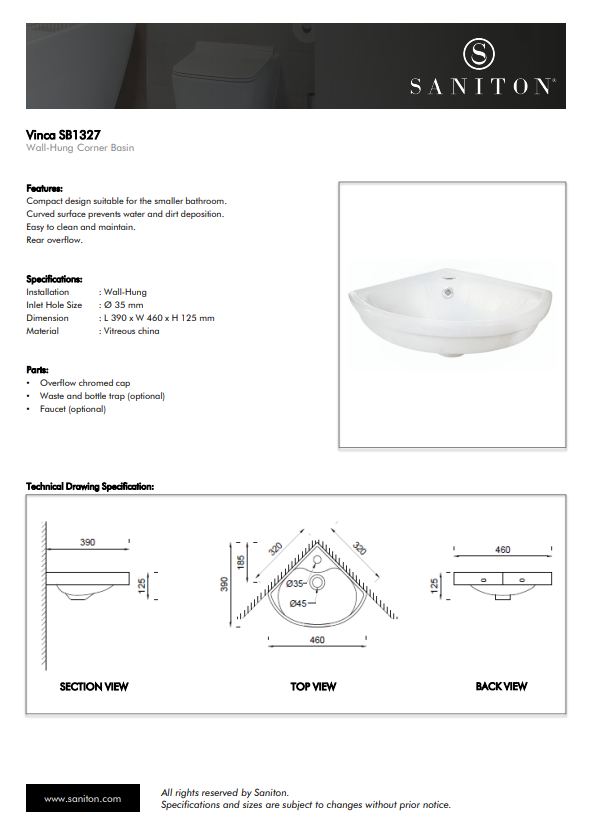

TECHNICAL DRAWING NOTES

• Wall Projection: 390 mm

• Total Width: 460 mm

• Bowl Depth: 125 mm

• Corner Length: 320 mm (Each wall side)

• Waste Hole: Ø 45 mm

• Faucet Hole: Ø 35 mm

INCLUDED & OPTIONAL PARTS

• Included: Overflow chromed cap

• Optional: Waste and bottle trap

• Optional: Faucet

All dimensions are in mm.
