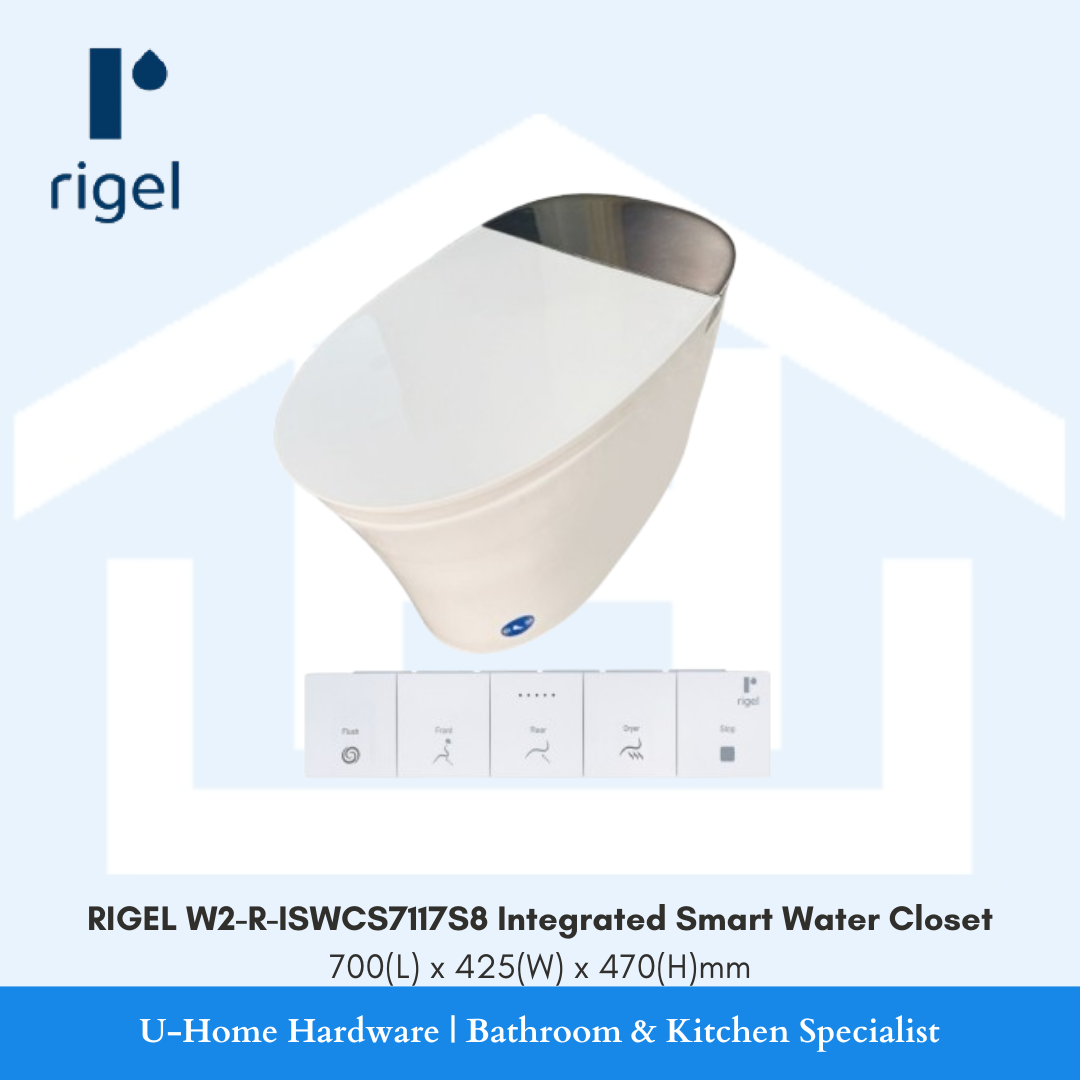

RIGEL W2-R-ISWCS7117S8 Integrated Smart Water Closet

W2-R-ISWCS7117S8

Integrated Smart Water Closet

PRODUCT FEATURES

• Versatile Washing: Rear and front bidet functions with a dedicated feminine wash.

• Intelligent Controls: Foot sensor and remote control operation for hands-free use.

• Automated Convenience: Auto open and close seat cover with motion-detect sensors.

• Personalized Comfort: Adjustable water temperature, adjustable water pressure, and a heated seat with a warmer.

• Hygiene & Maintenance: Self-cleaning nozzle and an easy-to-clean surface profile.

• Advanced Air System: Integrated air blower, deodorization, and soft-closing seat cover.

• Flush Performance: Jet flushing with a Siphonic system and a manual flush backup.

• Safety First: Built-in electrical leakage protection.

PRODUCT SPECIFICATION

• Installation type: Floor-mounted

• Dimension: 700(L) x 425(W) x 470(H) mm

• Material (Water Closet): Vitreous China

• Material (Seat & Cover): PP

• Rough-in (S-trap): 200mm / 8 inches (Suitable for BTO flats)

• Power Input: 220-240V AC 50/60Hz

• IP Rating: IPX4

• Inlet: G1/2"

• Flushing Type: Jet flush with Siphonic

• Discharge Volume: Nominal 4.0 Litres (Full flush) / 3.0 Litres (Reduced flush)

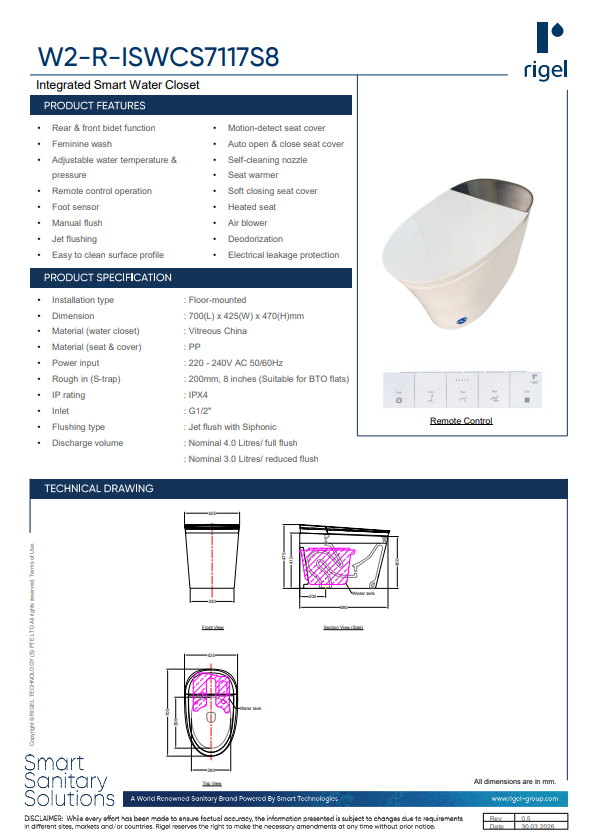

TECHNICAL DRAWING NOTES

• Total Length: 700 mm

• Total Width: 425 mm

• Total Height: 470 mm

• Trap Rough-in: 200 mm (Center of outlet to wall)

• Water Tank Connection: 330 mm from center of outlet

• Top View Width (Inner): 290 mm

All dimensions are in mm.
