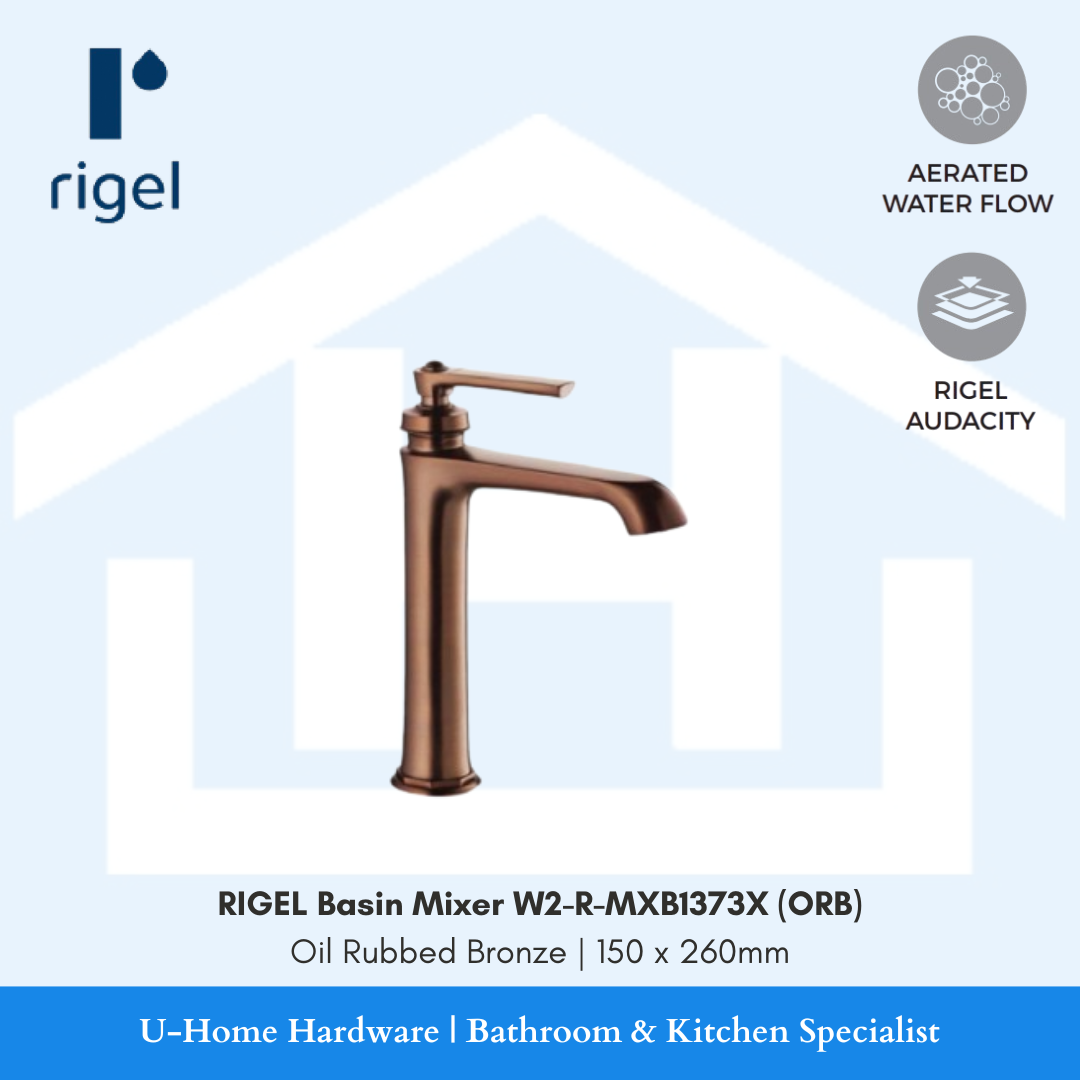

RIGEL Tall Basin Mixer W2-R-MXB1373X (ORB) Oil Rubbed Bronze

PRODUCT SPECIFICATION

• Installation type: Deck mounted

• Dimension: 150(L) x 260(H) mm

• Material: Brass

• Finishing: Oil rubbed bronze

• Water flow rate: Nominal 2.0 to 4.0 Litres/Min

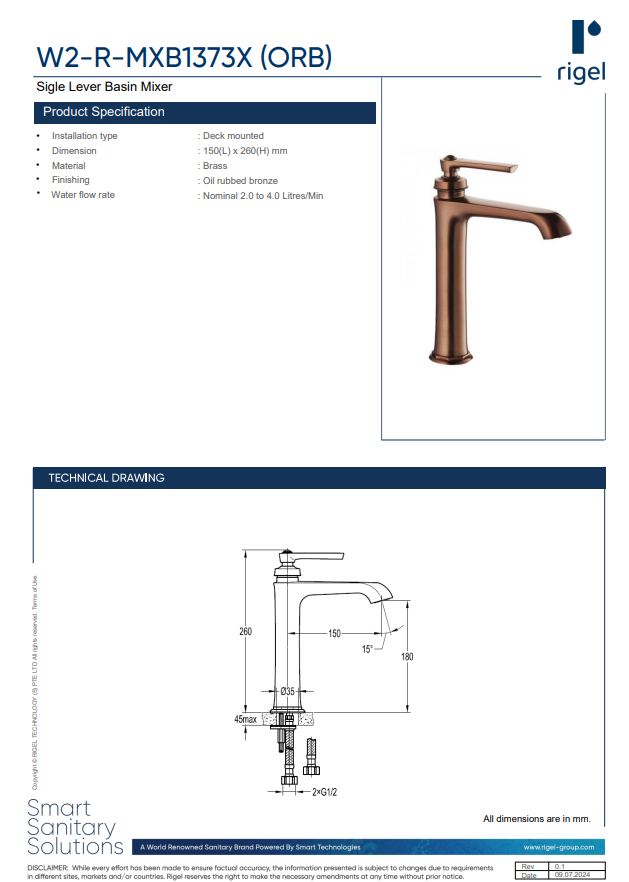

TECHNICAL DRAWING NOTES

• Total Height: 260 mm

• Spout Height: 180 mm

• Spout Reach: 150 mm

• Body Diameter: Ø35 mm

• Deck Thickness Compatibility: Max 45 mm

• Inlet Connection: 2 x G1/2"

• Spout Angle: 15°

All dimensions are in mm.
