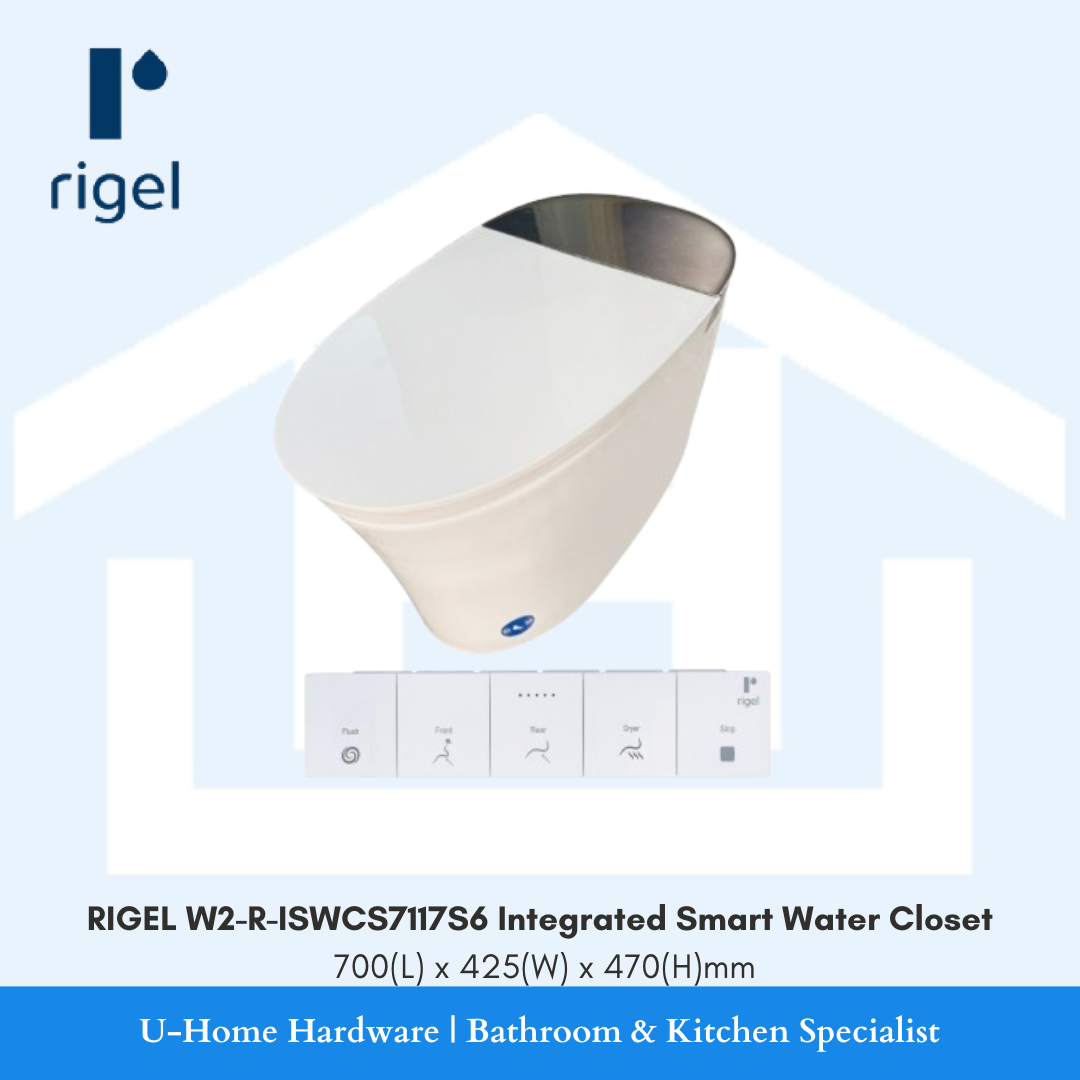

RIGEL W2-R-ISWCS7117S6 Integrated Smart Water Closet Toilet Bowl

W2-R-ISWCS7117S6

Integrated Smart Water Closet

PRODUCT FEATURES

• Comprehensive Wash: Rear & front bidet function and dedicated feminine wash.

• Custom Comfort: Adjustable water temperature and pressure settings.

• Smart Operation: Remote control operation and convenient foot sensor.

• Automated Hygiene: Self-cleaning nozzle, motion-detect seat cover, and auto open & close seat cover.

• Luxury Comfort: Built-in seat warmer, heated seat, and air blower.

• Advanced Flushing: Jet flushing with Siphonic system and manual flush option.

• Design & Maintenance: Super slim design with a soft-closing seat and easy-to-clean surface profile.

• Safety & Air Quality: Deodorization and electrical leakage protection.

PRODUCT SPECIFICATION

• Installation type: Floor-mounted

• Dimension: 700(L) x 425(W) x 470(H) mm

• Material (Water Closet): Vitreous China

• Material (Seat & Cover): PP

• Rough-in (S-trap): 152mm / 6 inches (Suitable for BTO flats)

• Power Input: 220-240V AC 50/60Hz

• IP Rating: IPX4

• Inlet: G1/2"

• Flushing Type: Jet flush with Siphonic

• Discharge Volume: Nominal 4.0 Litres (Full flush) / 3.0 Litres (Reduced flush)

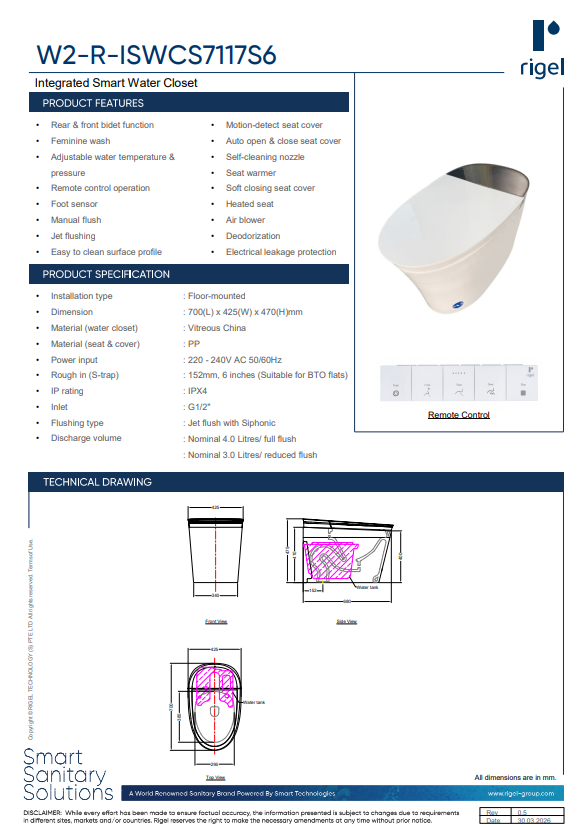

TECHNICAL DRAWING NOTES

• Total Length: 700 mm

• Total Width: 425 mm

• Total Height: 470 mm

• Trap Rough-in: 152 mm (Center of outlet to wall)

• Seat Height: Approximately 426 mm

• Water Tank Connection: 340 mm from center of outlet

All dimensions are in mm.
