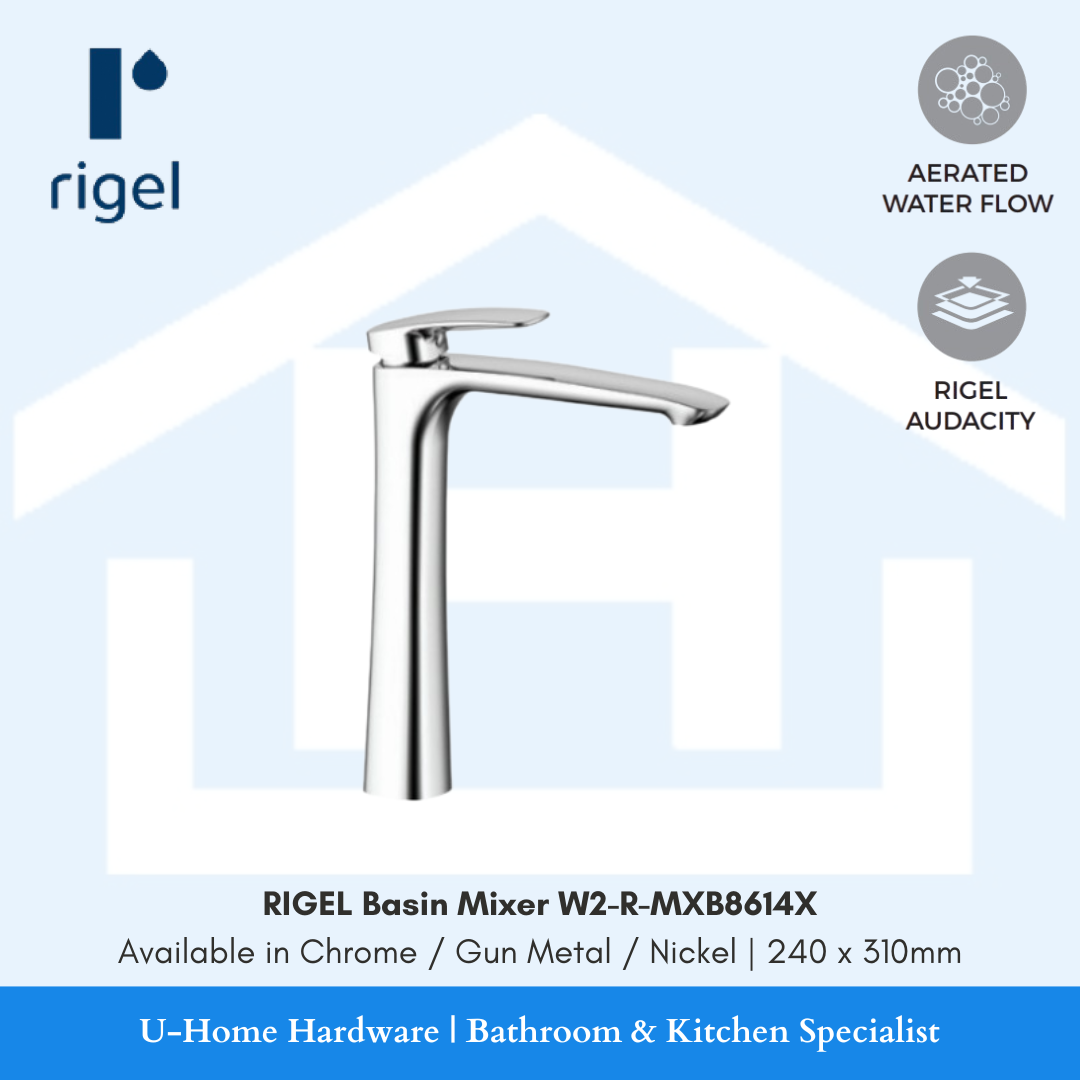

RIGEL Tall Basin Mixer W2-R-MXB8614X

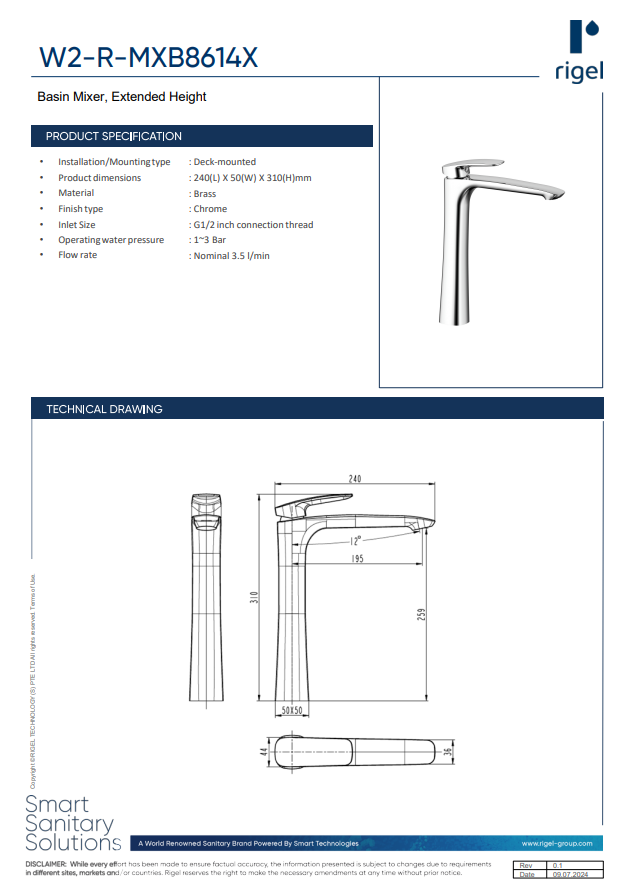

PRODUCT SPECIFICATION

• Installation/Mounting type: Deck-mounted

• Product dimensions: 240(L) x 50(W) x 310(H)mm

• Material: Brass

• Finish type: Chrome / Gun Metal / Nickel

• Inlet Size: G1/2 inch connection thread

• Operating water pressure: 1~3 Bar

• Flow rate: Nominal 3.5 l/min

TECHNICAL DRAWING NOTES

• Total Height: 310mm

• Spout Height: 259mm

• Spout Reach: 195mm

• Base Dimension: 50 x 50 mm

• Handle Length: 240mm (Total reach)

• Spout Angle: 12°
