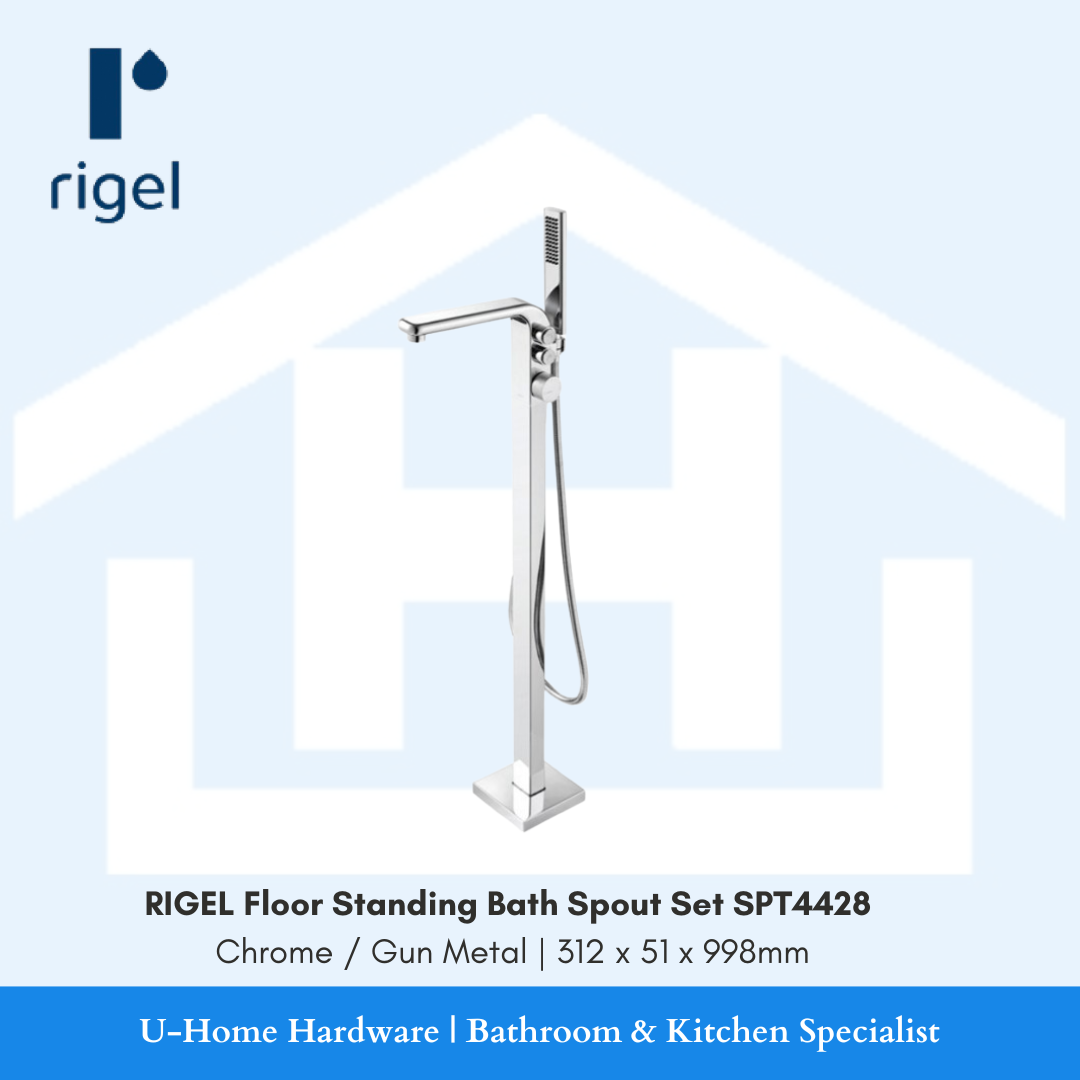

RIGEL Floor Standing Bath Spout Set SPT4428 Chrome / Gun Metal | 312 x 51 x 998mm

R-SPT4428

Floor Standing Bath Spout Set

PRODUCT SPECIFICATION

• Installation/Mounting type: Floor-mounted

• Product Dimensions: 312(L) x 51(W) x 998(H) mm

• Material: Brass Hand Shower, S/S Shower Hose

• Finish Type: Chrome and Gun Metal

• Inlet Size: G1/2 inch Connection Thread

• Adjustable Spray Patterns: 1

• Operating Water Pressure: 1 ~ 3 Bar

• Flow Rate: Nominal 12 Litres/Min

• Item Weight: Est 12 kg

INCLUDED COMPONENTS

• Floor Standing Bath Spout

• Flexible Hose

• Handheld Shower

• Mixed Controller

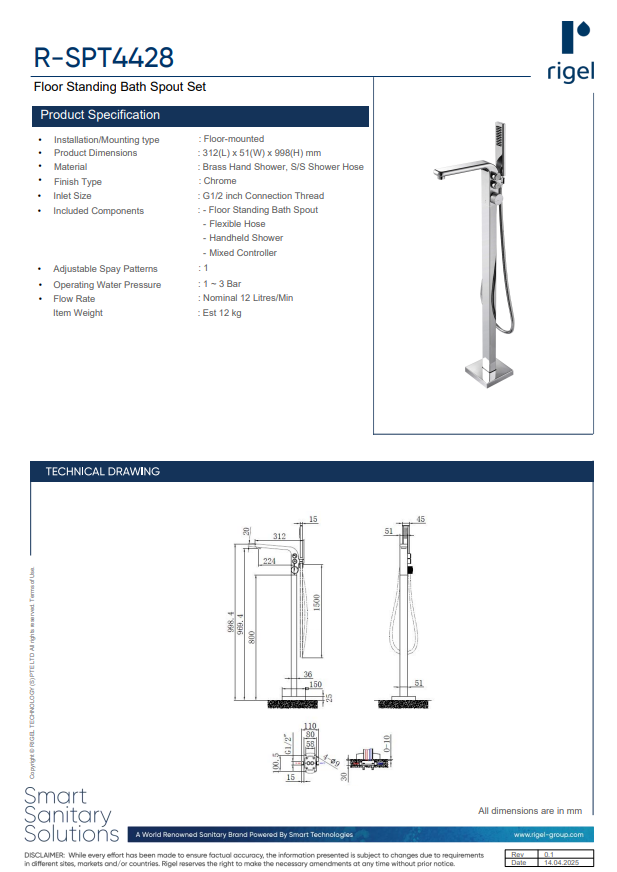

TECHNICAL DRAWING NOTES

• Total Height: 998.4 mm

• Spout Height: 969.4 mm

• Spout Reach: 224 mm

• Total Length (inc. shower): 312 mm

• Base Dimension: 150 x 150 mm

• Shower Hose Length: 1500 mm

• Body Width: 51 mm

All dimensions are in mm.
