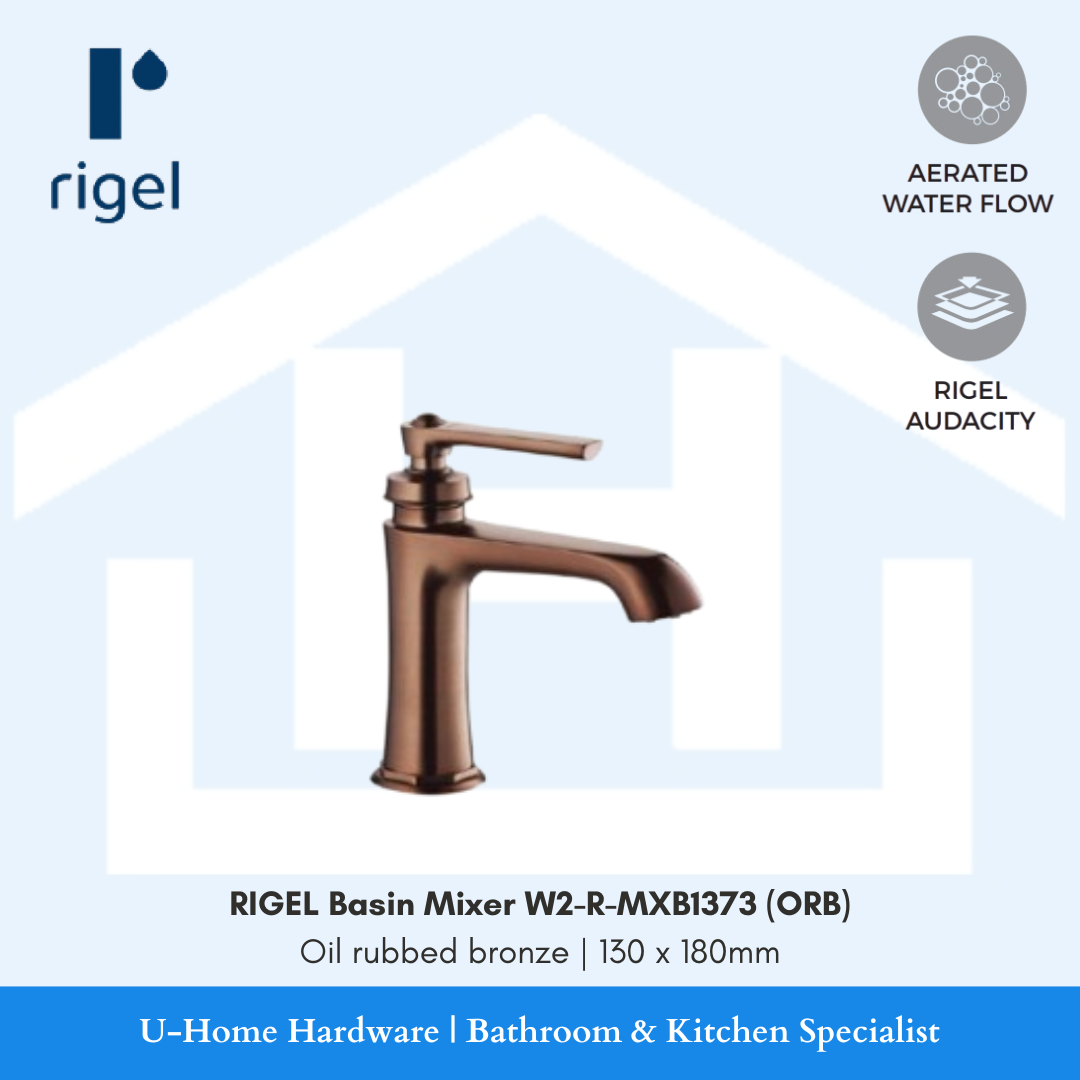

RIGEL Basin Mixer W2-R-MXB1373 (ORB) Oil rubbed bronze

PRODUCT SPECIFICATION

• Installation type: Deck mounted

• Dimension: 130(L) x 180(H) mm

• Material: Brass

• Finishing: Oil rubbed bronze

• Water flow rate: Nominal 2.0 to 4.0 Litres/Min

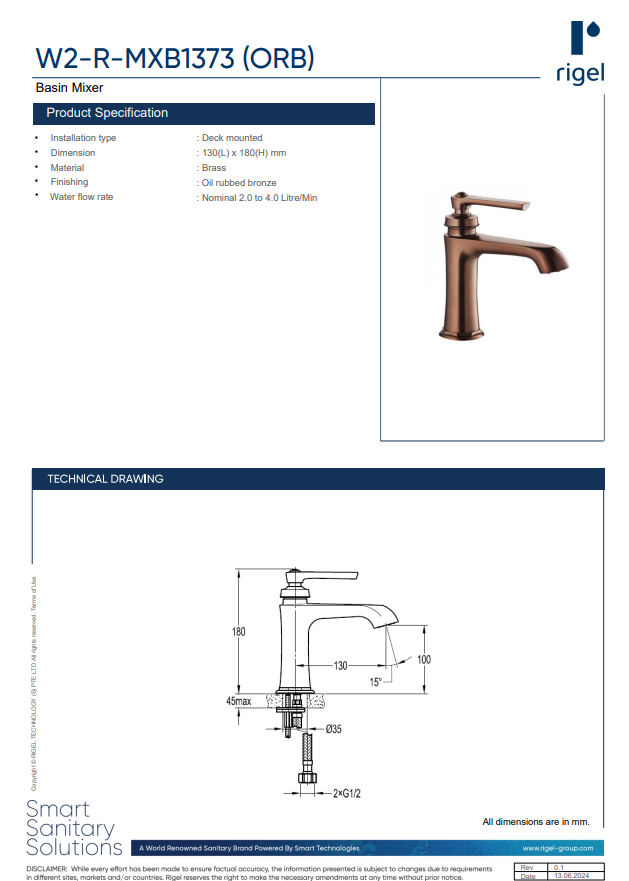

TECHNICAL DRAWING NOTES

• Total Height: 180 mm

• Spout Height: 100 mm

• Spout Reach: 130 mm

• Body Diameter: Ø35 mm

• Deck Thickness Compatibility: Max 45 mm

• Inlet Connection: 2 x G1/2"

• Spout Angle: 15°

All dimensions are in mm.
