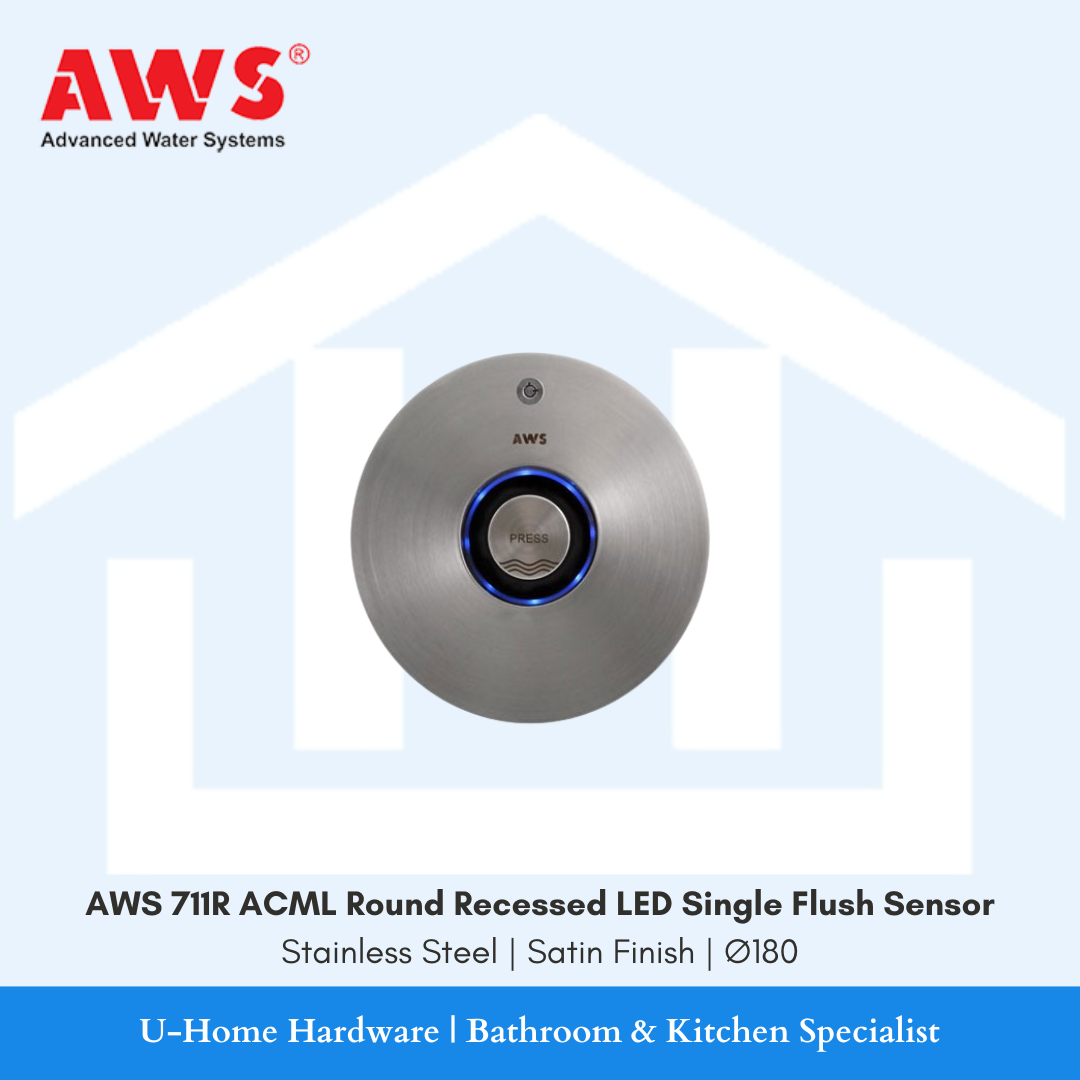

AWS 711R ACML ROUND RECESSED LED SINGLE FLUSH SENSOR

Key Features & Benefits

• Intelligent Touchless Operation: Advanced electronic infrared sensor automatically detects users from a precise range of 800mm to 950mm, ensuring a hands-free, hygienic bathroom environment.

• Smart LED Indicator Rings: Features a color-coded LED system that provides clear, real-time status updates:

  • Standby Mode: Flashing Blue LED (Ultra-low energy consumption)

  • Confirmed Detect Mode: Red LED / Violet LED

  • Confirmed Flush Mode: Automatic eco-flush cycle

• Dual Operation (Manual Override): Outfitted with a reliable Manual Bypass button, ensuring the water closet remains fully operational even during power cuts or maintenance.

• Vandal-Resistant Security: Built with a robust faceplate integrated with a secure Cam Lock mechanism, making it highly secure for high-traffic commercial spaces, offices, and modern homes alike.

• Premium Satin Finish: The high-grade $\varnothing180\text{mm}$ round stainless steel plate offers an elegant, rust-proof, satin look that resists fingerprints and is incredibly easy to maintain.

Technical Specifications

• Brand: AWS (Advanced Water Systems / Venus Technology)

• Model Code: 711R ACML

• Product Type: Round Recessed LED Single Flush Sensor WC Flush Valve

• Material: Premium Stainless Steel (Satin Finish)

• Faceplate Dimensions: $\varnothing180\text{mm}$ Circular Plate

• Back Housing Box Dimensions: 265mm (W) x 250mm (H) x 110mm (D)

• Flush Volume: Water-saving 4.0L per flush

• Sensing Distance: 800mm – 950mm adjustable range

• Power Consumption: * Standby: 0.006W (Blue LED)

  • Detection: 0.24W (Red/Violet LED)

• Installation Suitability: Ideal for wall-hung water closets, standard toilet pans, and modern squatting pans.
